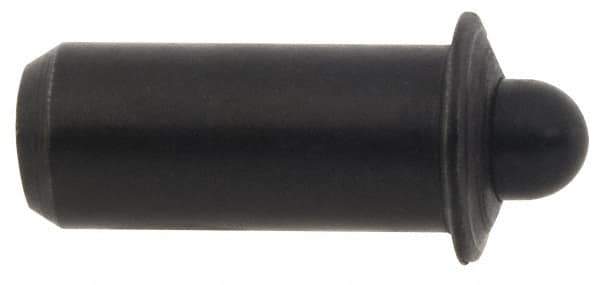

Vlier - 1.1" Body Len x 1/2" Body Diam, 0.332" Plunger Diam, 8 Lb Init to 18 Lb Final End Force, 1.1" Len Under Flange, Stainless Steel Press Fit Spring Plunger - 11/16" Flange Diam, 0.134" Flange Thickness, 1.234" Plunger Len, 1/4" Plunger Projection
Item #: 05137849
Brand: Vlier
Model #: SPFP60
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.5000 |
| Body Length (Decimal Inch) | 1.1000 |
| Length Under Flange (Decimal Inch) | 1.1000 |
| Plunger Diameter (Decimal Inch) | 0.3320 |
| Initial End Force (Lb.) | 8.00 |
| Final End Force (Lb.) | 18.00 |
| Locking Element | No |
| Flange Diameter (Decimal Inch) | 0.6880 |
| Flange Thickness (Decimal Inch) | 0.1340 |
| Plunger Length (Decimal Inch) | 1.2340 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Body Material | Stainless Steel |
| Nose Material | Stainless Steel |
