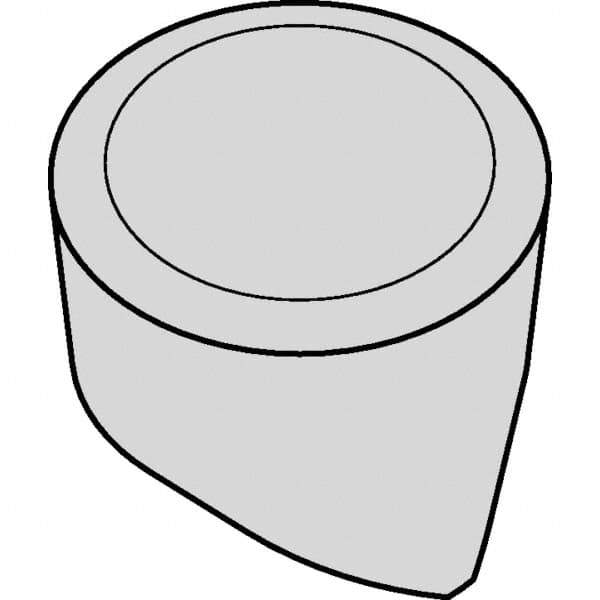

Kennametal - RCGX191000 T20015 Grade KY1615 Ceramic Turning Insert - Uncoated, Round, 3/4" Inscr Circle, 10mm Thick
Item #: 05091913
Brand: Kennametal
Model #: 1881321
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 191000 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Decimal Inch) | 0.3937 |
| Thickness (mm) | 10.00 |
| Manufacturer's Grade | KY1615 |
| Coating | Uncoated |
| Material Grade | C4/C8 |
| Chip Breaker | T20015 |
| Rake | Positive |
| Relief Angle | 7 |
| Insert Hand | Neutral |
| Series | KENDEX |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp |
| Shape | Round |
