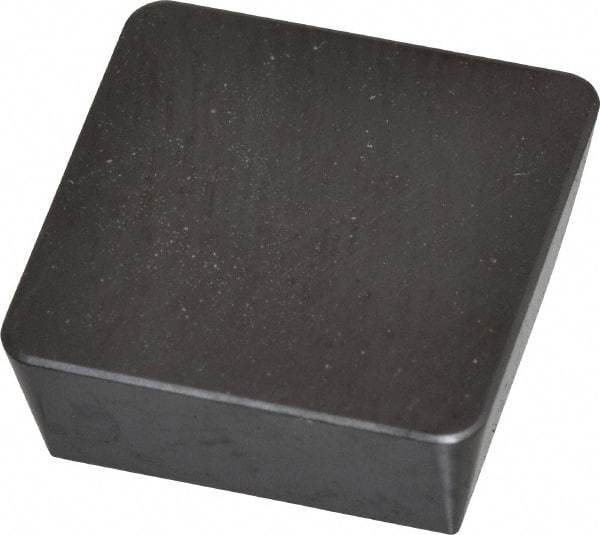

Kennametal - SPG433 Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 3/16" Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 05045752
Brand: Kennametal
Model #: 2210116
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPG |
| Insert Size | 433 |
| Material | Carbide |
| Material Grade | C1/C5/C6 |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (mm) | 1.20 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| ISO Number | SPGN120412T |
