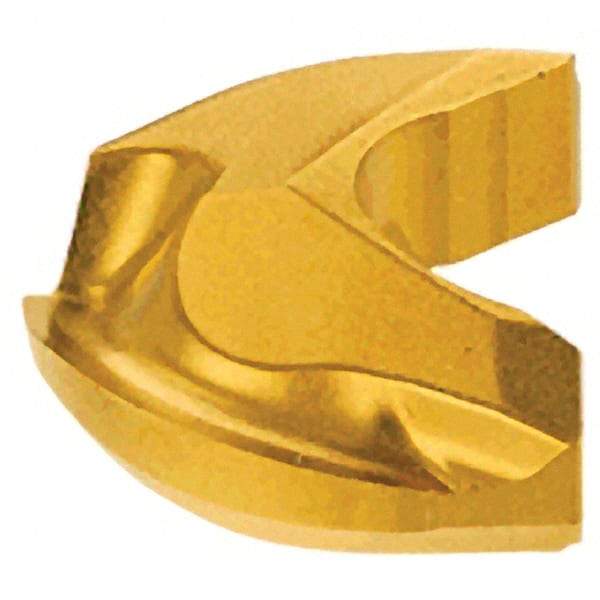

Iscar - CRF100, IC908 Grade Carbide Profiling Insert - TiAlN Finish, Irregular Shape, 0.236" Thick, 1/2" Corner Radius
Item #: 04941837
Brand: Iscar
Model #: 5602393
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CRF |
| Insert Size | 100 |
| Manufacturer's Grade | IC908 |
| Width (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Coating | TiAlN |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5400 |
| Shape | Irregular |
