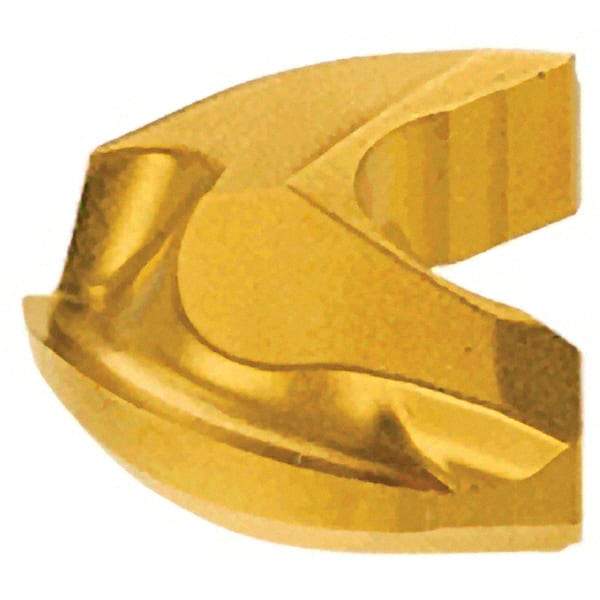

Iscar - CRF120, IC328 Grade Carbide Profiling Insert - TiCN Finish, Irregular Shape, 3.6mm Thick, 6mm Corner Radius
Item #: 04941803
Brand: Iscar
Model #: 5601976
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CRF |
| Insert Size | 120 |
| Manufacturer's Grade | IC328 |
| Width (mm) | 12.00 |
| Width (Decimal Inch) | 0.4724 |
| Thickness (mm) | 3.60 |
| Thickness (Decimal Inch) | 0.1417 |
| Corner Radius (mm) | 6.00 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Coating | TiCN |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Shape | Irregular |
