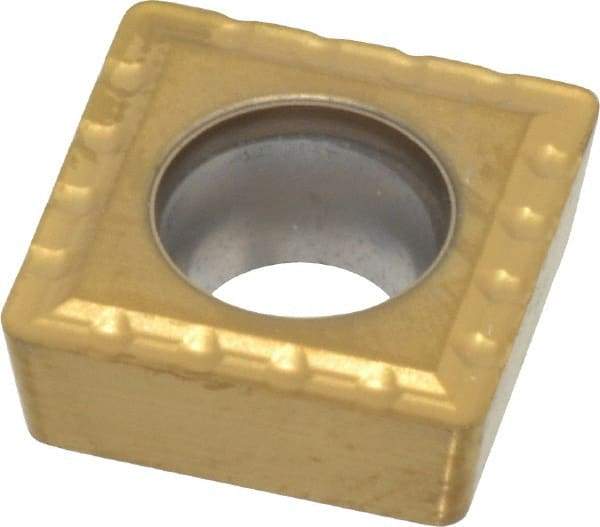

Seco - SCGX120408 P1 Grade T250D Carbide Indexable Drill Insert - TiAlN/TiN Finish, 1/2" Inscribed Circle
Item #: 04895272
Brand: Seco
Model #: 59715
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 120408 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | T250D |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating | TiAlN/TiN |
| Chipbreaker | P1 |
