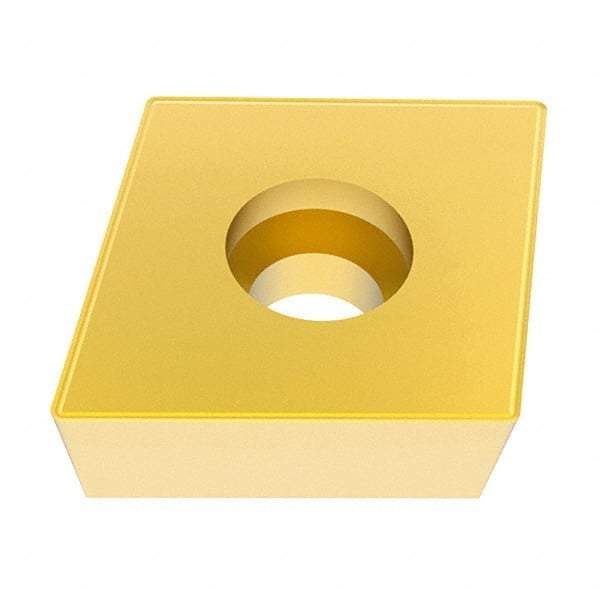

Allied Machine and Engineering - CCGT06T308 Carbide Indexable Drill Insert - Diamond, 6.35mm Inscribed Circle
Item #: 04597043
Brand: Allied Machine and Engineering
Model #: CCGT-06T308
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 06T308 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Inscribed Circle (mm) | 6.35 |
| Thickness (mm) | 3.96 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Diamond |
| Length (mm) | 6.45 |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1098 |
| Relief Angle | 7 |
| Included Angle | 80 |
