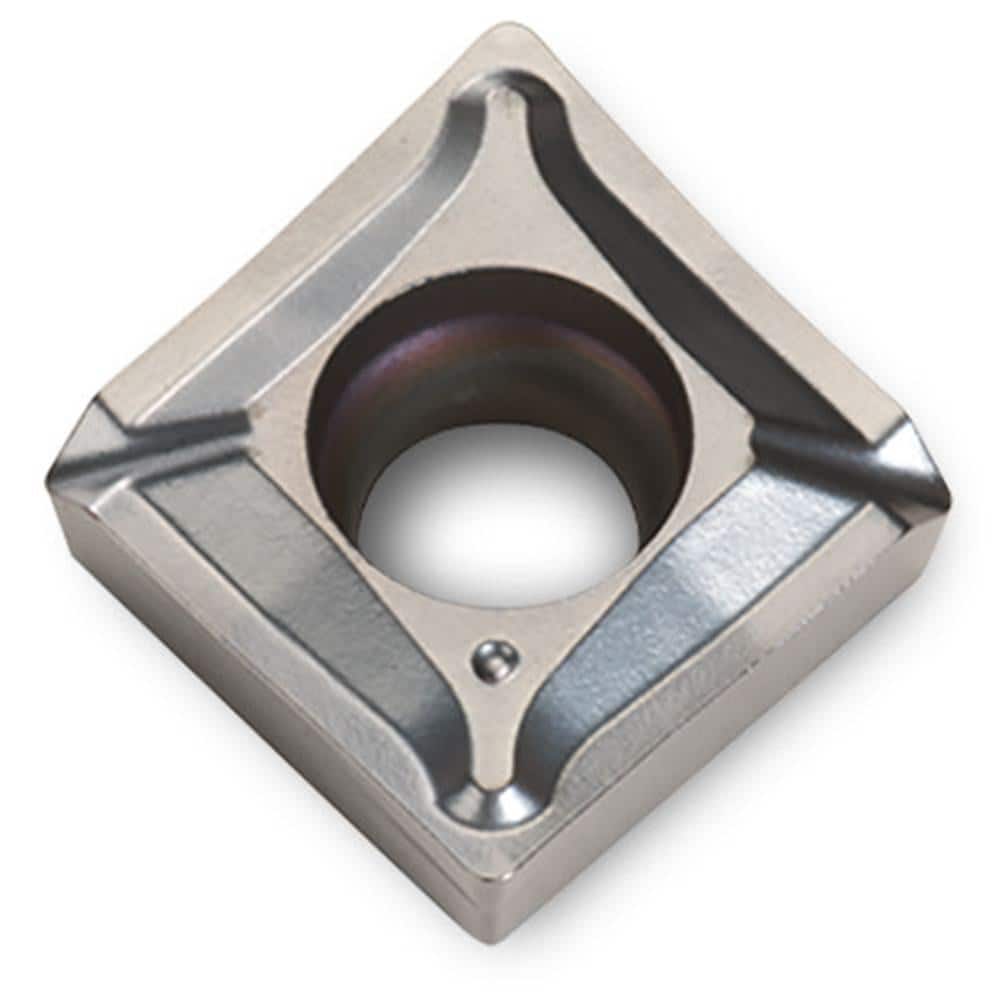

Indexable Drill Insert: XCMT10TC TT9030, Carbide Coated, 83.5 ° Diamond
Item #: 04528212
Brand: Ingersoll Cutting Tools
Model #: 5516726
Product Specifications
| Insert Style | XCMT |
| Insert Size Code | 10 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9030 |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0160 |
| Chipbreaker | TC |
| Series | XCMT10 |
| Coating Process | PVD |
| Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XCMT10T304TC |
| Iso Code | XCMT10T304TC |
| Length (Decimal Inch - 4 Decimals) | 0.4100 |
| Included Angle Degree | 83.50 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Coating/Finish | Coated |
