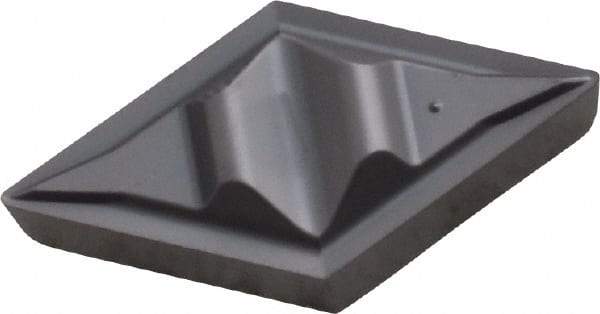

Kennametal - DPGR431, KC5010 Grade Carbide Profiling Insert - TiAlN Finish, 55° Incl Angle, Diamond, 0.6102" Side Length, 3/16" Thick, 1/64" Corner Radius, 1/2" Inscribed Circle
Item #: 04416228
Brand: Kennametal
Model #: 1849051
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DPGR |
| Insert Size | 431 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KC5010 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (Inch) | 3/16 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Relief Angle | 8 |
| Coating | TiAlN |
| Rake | Positive |
| Rake Angle | 8 |
| Coating Process | PVD |
| Side Length (Decimal Inch) | 0.6102 |
| Side Length (mm) | 15.50 |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | Top Notch |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Shape | Diamond |
