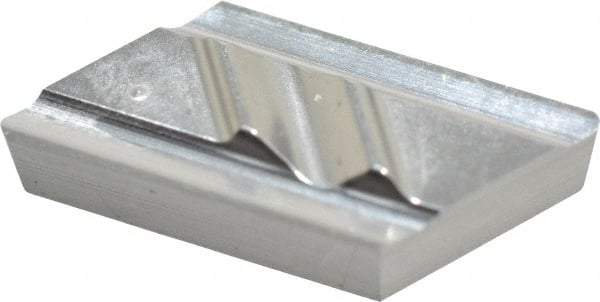

Kennametal - NPR51, KC5410 Grade Carbide Profiling Insert - TiB2 Finish, 55° Incl Angle, Parallelogram, 0.4567" Side Length, 1/8" Thick, 1/64" Corner Radius
Item #: 04416202
Brand: Kennametal
Model #: 1840501
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | NPR |
| Insert Size | 51 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KC5410 |
| Width (mm) | 6.35 |
| Width (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 8 |
| Coating | TiB2 |
| Insert Length (mm) | 9.53 |
| Insert Length (Decimal Inch) | 0.3752 |
| Rake | Positive |
| Rake Angle | 10 |
| Coating Process | PVD |
| Side Length (Decimal Inch) | 0.4567 |
| Side Length (mm) | 11.60 |
| Chipbreaker | 15 |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Series | Top Notch |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Shape | Parallelogram |
