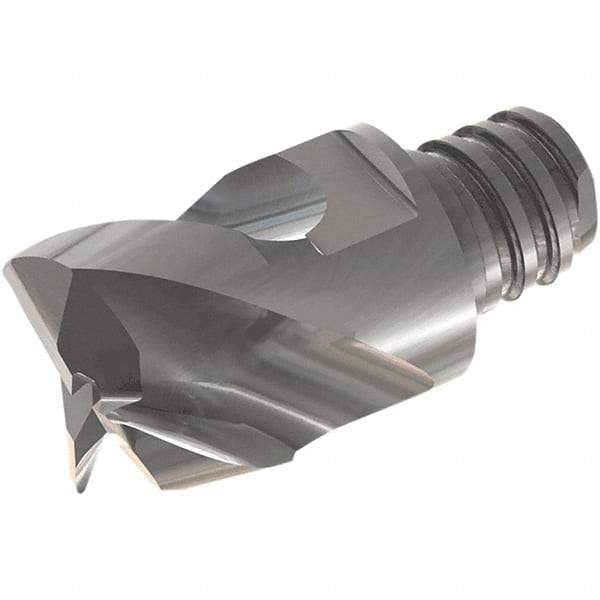

Iscar - MM ECU Grade IC908 Carbide Keyway Milling Tip Insert - TiAlN Finish, 3 Flutes, 15.7mm Cutting Diam, 8mm Depth of Cut, 20.5mm Extension, 0.012" Cnr Rad, 38° Helix
Item #: 04191060
Brand: Iscar
Model #: 5621794
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM ECU |
| Milling Tip Type | Keyway |
| Material | Carbide |
| Cutting Diameter (mm) | 15.70 |
| Cutting Diameter (Decimal Inch) | 0.6180 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 8.00 |
| Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Milling Tip Full Description | Keyway |
| Corner Radius (Decimal Inch) | 0.0120 |
| Coating Process | PVD |
| Extension From Holder (mm) | 20.50 |
| Extension From Holder (Decimal Inch) | 0.8070 |
| Thread Size | T10 |
| Helix Angle | 38 |
