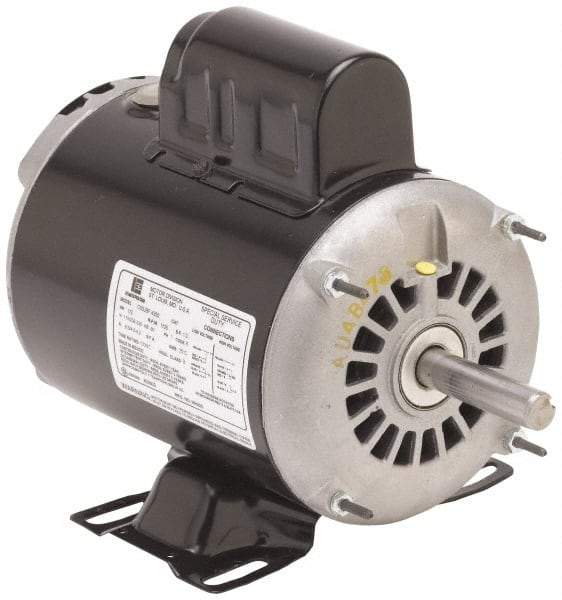

US Motors - 2 hp, ODP Enclosure, No Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 23.0/11.5 Full Load Amps, B Class Insulation, Reversible - USA Tool & Supply

US Motors - 2 hp, ODP Enclosure, No Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 56 Frame, Rigid Mount, 1 Speed, Ball Bearings, 23.0/11.5 Full Load Amps, B Class Insulation, Reversible


Item #: 04180162
Brand: US Motors
Model #: D2C1JH
Exact Tooling IR#: 04

Product Specifications
Motor Type Single Phase Permanent Split Capacitor (PSC)
Type of Enclosure ODP
Horsepower 2
Thermal Protection Rating None
Name Plate RPMs 3450
Voltage 115/230
Frequency Hz 60
Frame Size 56
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 23.0/11.5
Insulation Class B
Overall Length (Decimal Inch) 12.2500
Shaft Diameter x Length (Inch) 5/8 x 1-7/8
Full Load Efficiency Rating 80.8
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$604.13
