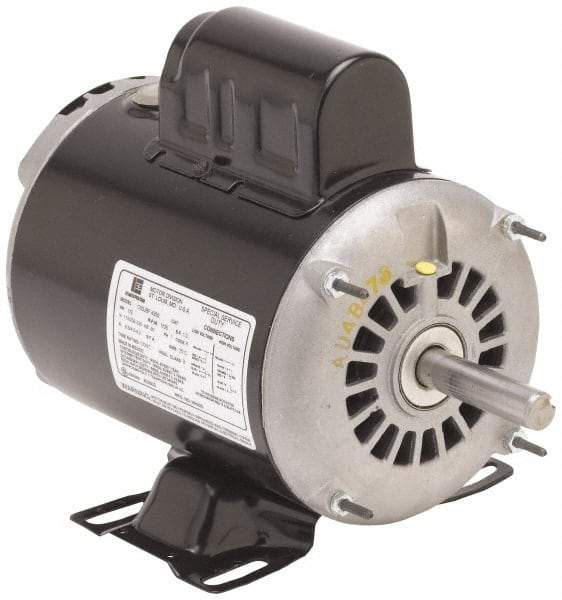

US Motors - 5 hp, ODP Enclosure, No Thermal Protection, 3,520 RPM, 230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 184T Frame, Rigid Mount, 1 Speed, Ball Bearings, 19.60 Full Load Amps, F Class Insulation
Item #: 04175535
Brand: US Motors
Model #: D5C1K18
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | ODP |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3520 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 184T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 19.60 |
| Insulation Class | F |
| Overall Length (Decimal Inch) | 18.0000 |
| Shaft Diameter x Length (Inch) | 1-1/8 x 2-3/4 |
| Service Factor Rating | 1.15 |
| PSC Code | 6105 |
