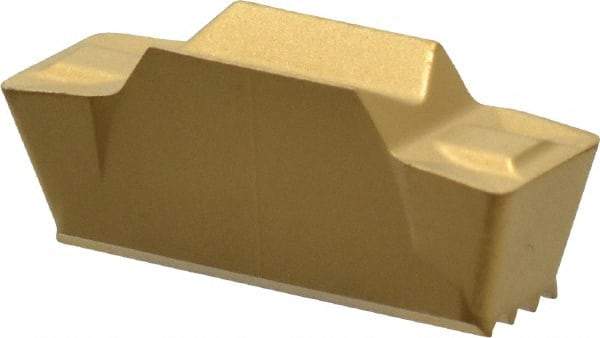

Seco - LCMF, 160505 3/16" Cutting Width, MT, CP500 Grade, Multi-Directional Turning Insert - 0.5mm Cnr Rad
Item #: 04155701
Brand: Seco
Model #: 18388
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Insert Hand | Neutral |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Chipbreaker | MT |
| Insert Length (Decimal Inch) | 0.6300 |
| Length (Decimal Inch) | 0.6300 |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Included Angle | 90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1870 |
| Insert Holding Method | Clamp |
