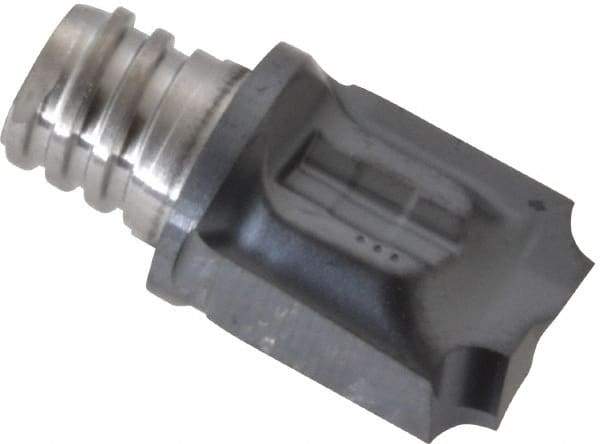

Iscar - MM HR Grade IC908 Carbide Concave Radius Milling Tip Insert - TiAlN Finish, 2 Flutes, 0.268" Cutting Diam, 3/8" Depth of Cut, 0.492" Extension, 1/16" Cnr Rad
Item #: 04148649
Brand: Iscar
Model #: 5604023
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HR |
| Milling Tip Type | Concave Radius |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.2680 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.3740 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Concave Radius |
| Corner Radius (Decimal Inch) | 0.0630 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.4920 |
| Thread Size | T06 |
| Manufacturers Catalog Number | MM HR1.6/063-6.8-2T06 |
