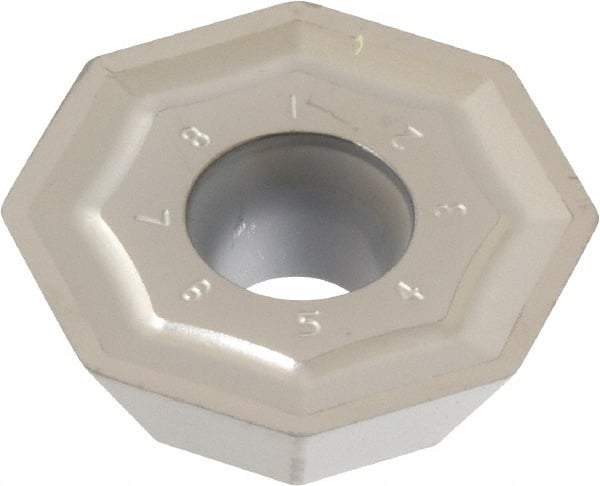

Kennametal - OFKT64 LN Grade KC410M Carbide Milling Insert - TiB2 Finish, 0.236" Thick, 0.736" Inscribed Circle, 1.2mm Corner Radius
Item #: 04144622
Brand: Kennametal
Model #: 2499837
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFKT |
| Insert Size | 64 |
| Material | Carbide |
| Manufacturer's Grade | KC410M |
| Coating | TiB2 |
| Length (Decimal Inch) | 0.2953 |
| Inscribed Circle (Decimal Inch) | 0.7360 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 25.000 |
| Rake Angle | 0 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | LN |
| ISO Number | OFKT07L6AFFNLNJ |
