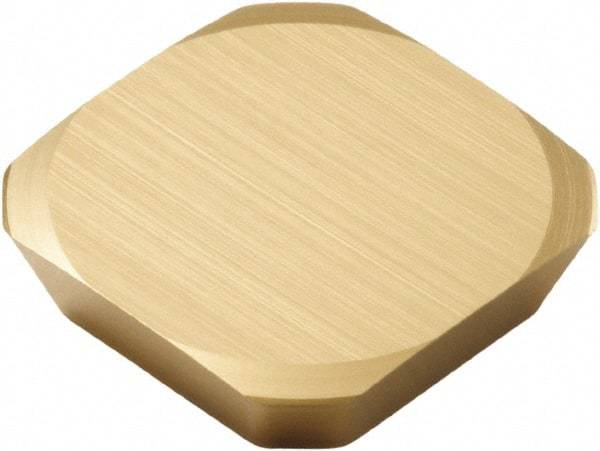

Seco - SEEX42 MD14 Grade F15M Carbide Milling Insert - TiAlN/TiN Finish, 1/8" Thick, 1/2" Inscribed Circle
Item #: 04025169
Brand: Seco
Model #: 84948
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | F15M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MD14 |
| Manufacturers Catalog Number | SEEX 42AFTN-MD14 |
