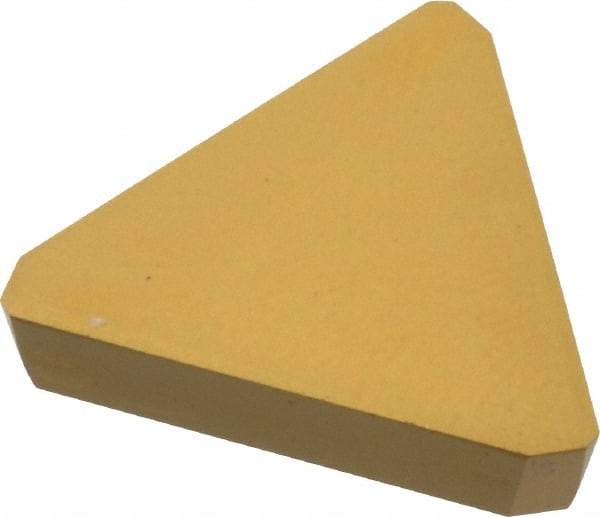

Interstate - TPC32 Grade TCN55 Carbide Milling Insert - TiN Finish, 1/8" Thick, 3/8" Inscribed Circle, 1/32" Corner Radius
Item #: 04014452
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPC |
| Insert Size | 32 |
| Material | Carbide |
| Material Grade | C6 |
| Manufacturer's Grade | TCN55 |
| Coating | TiN |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Shape | Triangle |
| ISO Number | TPCN160308ZR |
