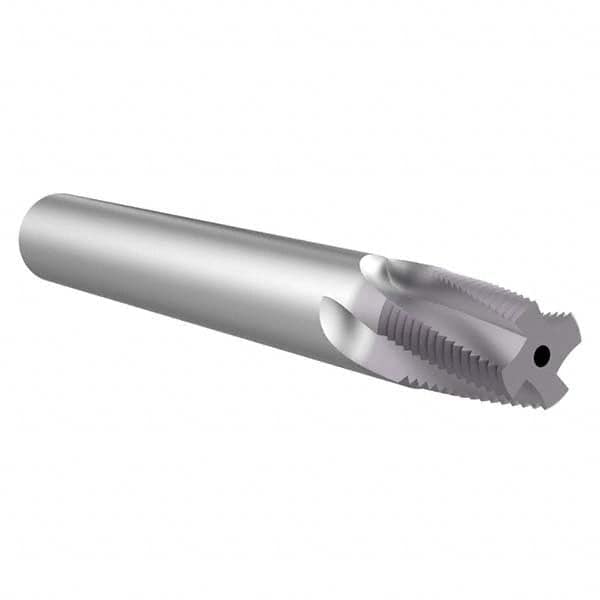

Allied Machine and Engineering - 1/4, 3/8 Internal/External 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 12336970
Brand: Allied Machine and Engineering
Model #: TM18NPTFCHM
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 18 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4; 3/8 |
| Thread Type | Internal/External |
| Shank Diameter (mm) | 8 |
| Number of Flutes | 4 |
| Cutting Diameter (mm) | 7.75 |
| Length of Cut (mm) | 15.70 |
| Finish/Coating | TiAlN |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 64 |
| Thread Standard | NPTF |
| Flute Direction | Right Hand |
| Thread Mill Type | Long Reach |
