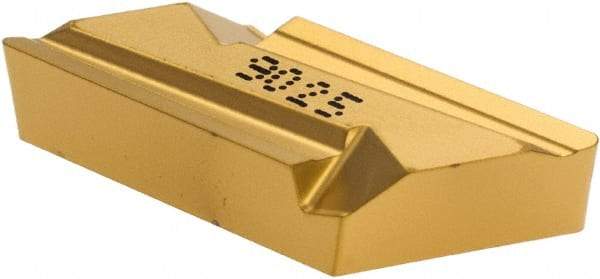

Iscar - KNUX3331, IC9025 Grade Carbide Profiling Insert - TiCn/Al2O3/TiN Finish, 55° Incl Angle, Parallelogram, 0.776" Side Length, 4.75mm Thick, 0.51mm Corner Radius, 9.53mm Inscribed Circle
Item #: 03754231
Brand: Iscar
Model #: 5504866
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | KNUX |
| Insert Size | 3331 |
| Manufacturer's Grade | IC9025 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (mm) | 0.51 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Coating | TiCn/Al2O3/TiN |
| Rake | Positive |
| Rake Angle | 12 |
| Coating Process | CVD |
| Side Length (Decimal Inch) | 0.7760 |
| Side Length (mm) | 19.71 |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Shape | Parallelogram |
