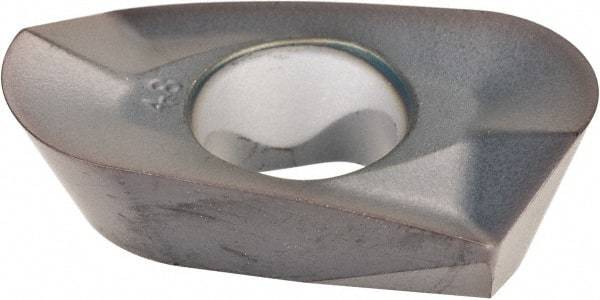

Kennametal - EC1848 LD Grade KC522M Carbide Milling Insert - TiAlN Finish, 0.217" Thick, 1/2" Inscribed Circle, 4.8mm Corner Radius
Item #: 03745809
Brand: Kennametal
Model #: 2447380
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1848 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | KC522M |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.4260 |
| Length (Decimal Inch) | 0.7953 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (Decimal Inch) | 0.1880 |
| Corner Radius (mm) | 4.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 70 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | LD |
| ISO Number | EDCT180548PDERLD |
