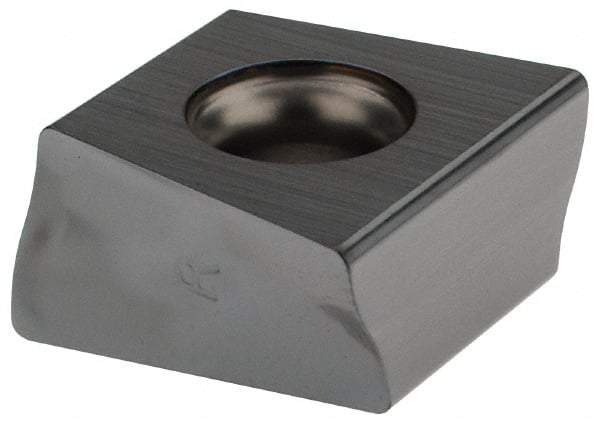

Ingersoll Cutting Tools - DPM424 Grade IN2005 Carbide Milling Insert - TiAlN Finish, 0.3" Thick, 0.591" Inscribed Circle, 0.031" Corner Radius
Item #: 03616406
Brand: Ingersoll Cutting Tools
Model #: 5811539
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DPM |
| Insert Size | 424 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | IN2005 |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.5510 |
| Inscribed Circle (Decimal Inch) | 0.5910 |
| Thickness (Decimal Inch) | 0.3000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Diamond |
| ISO Number | DPM424-001 IN2005 |
