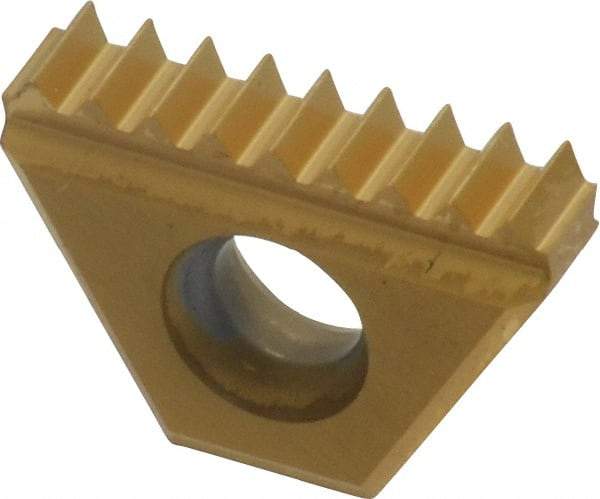

Kennametal - 16 TPI, Internal Thread, UN Standard, STN KC610M Grade Thread Mill Insert - Carbide, TiN/TiCN/TiN Coating
Item #: 03586005
Brand: Kennametal
Model #: 1288604
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiCN/TiC is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | STN |
| Thread Type | Internal |
| Thread Standard | UN |
| Threads Per Inch | 16 |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | KC610M |
| Material | Carbide |
| Coating | TiN/TiCN/TiN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Conical | No |
