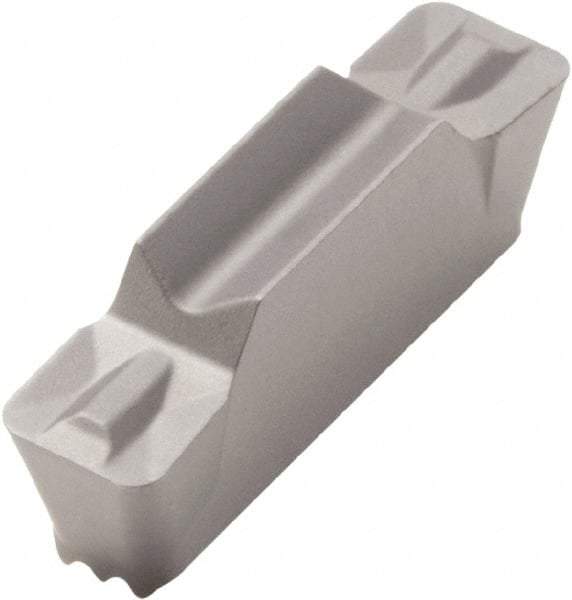

Seco - LCMF, 0.236" Cutting Width, MT, 883 Grade, Double End Multi-Directional Turning Insert - Uncoated
Item #: 03530490
Brand: Seco
Model #: 61816
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCMF |
| Manufacturer's Grade | 883 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0160 to 0.0390 |
| Single or Double End | Double |
| Chipbreaker | MT |
| Full Radius | No |
| Insert Length (Decimal Inch) | 0.6300 |
| Series | MDT |
| Coating | Uncoated |
