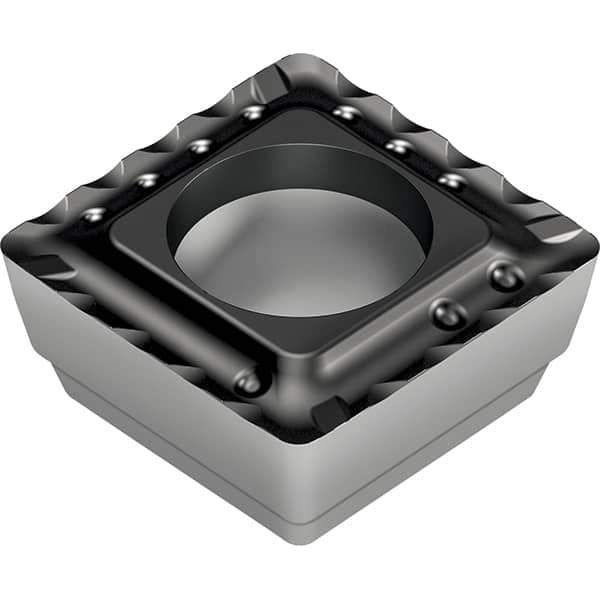

Walter - P4845 E67 Grade WKP35S Carbide Indexable Drill Insert - 4.11mm Thick, TiCN/Al2O3/TiN Finish, Square, 9.55mm Inscribed Circle, 0.58mm Corner Radius
Item #: 03444981
Brand: Walter
Model #: 6171336
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC520N |
| Coating | TiCN/TiN |
| Chip Breaker | FFG |
| ISO Number | DNMG 331-FFG |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6171336 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.58 |
| Corner Radius (Decimal Inch) | 0.0230 |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Chipbreaker | E67 |
| Inscribed Circle (mm) | 9.55 |
| Inscribed Circle (Decimal Inch) | 0.3760 |
| Material Grade | P35/K35 |
| Material | Carbide |
| Manufacturer's Grade | WKP35S |
| Insert Style | P484 |
| Insert Size | 5 |
| Thickness (mm) | 4.11 |
| Thickness (Decimal Inch) | 0.1620 |
| Shape | Square |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Multi Use Application | Turning |
| Shape | Diamond |
