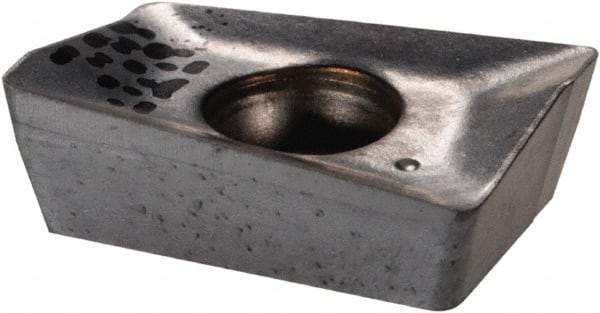

Iscar - APCT100304 HM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.138" Thick, 0.45mm Corner Radius
Item #: 03143997
Brand: Iscar
Model #: 5695677
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APCT |
| Insert Size | 100304 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.2638 |
| Length (Decimal Inch) | 0.4310 |
| Thickness (Decimal Inch) | 0.1380 |
| Corner Radius (Decimal Inch) | 0.0177 |
| Corner Radius (mm) | 0.45 |
| Relief Angle | 11.000 |
| Rake Angle | 17 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 10.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.3957 |
| ISO Number | APCT 100304R-HM |
