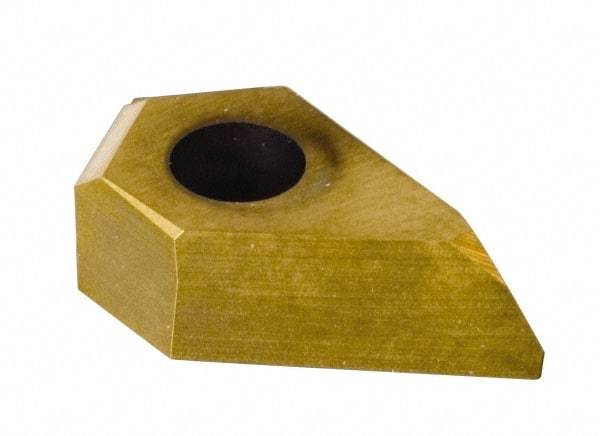

Kennametal - 3.41220, 41° KC7315 Grade Drill Chamfer Insert - TiAlN Coated, Series BF
Item #: 03132883
Brand: Kennametal
Model #: 2615044
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | BF |
| Material | Carbide |
| Insert Style | 3.41220 |
| Chamfer Angle | 41 |
| Manufacturer's Grade | KC7315 |
| Width (Decimal Inch) | 0.3976 |
| Width (mm) | 10.10 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Coating | TiAlN |
| Coating Process | PVD |
