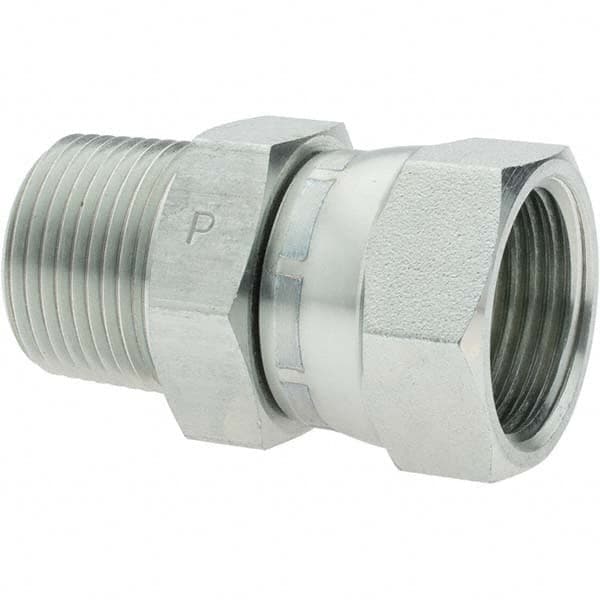

Steel Flared Tube Connector: 1″ Tube OD, 3/4-14 Thread, 37 ° Flared Angle MNPT x FNPT Ends
Item #: 03024874
Brand: Parker
Model #: 12 F6X-S
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 37 |
| Material | Steel |
| Thread Size | 3/4-14 in |
| Thread Standard | NPT |
| End Connection | MNPT x FNPT |
| Minimum Working Temperature (Deg C) | 55 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 500 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000 |
| Overall Length (Decimal Inch) | 2.1500 |
| Standards | ISO 8434-2; SAE 070106; SAE J514 |
| Max Working Pressure Dynamic | 3600 |
| Outside Diameter (Inch) | 1 |
| Maximum Working Temprature (Deg C) | 260 |
