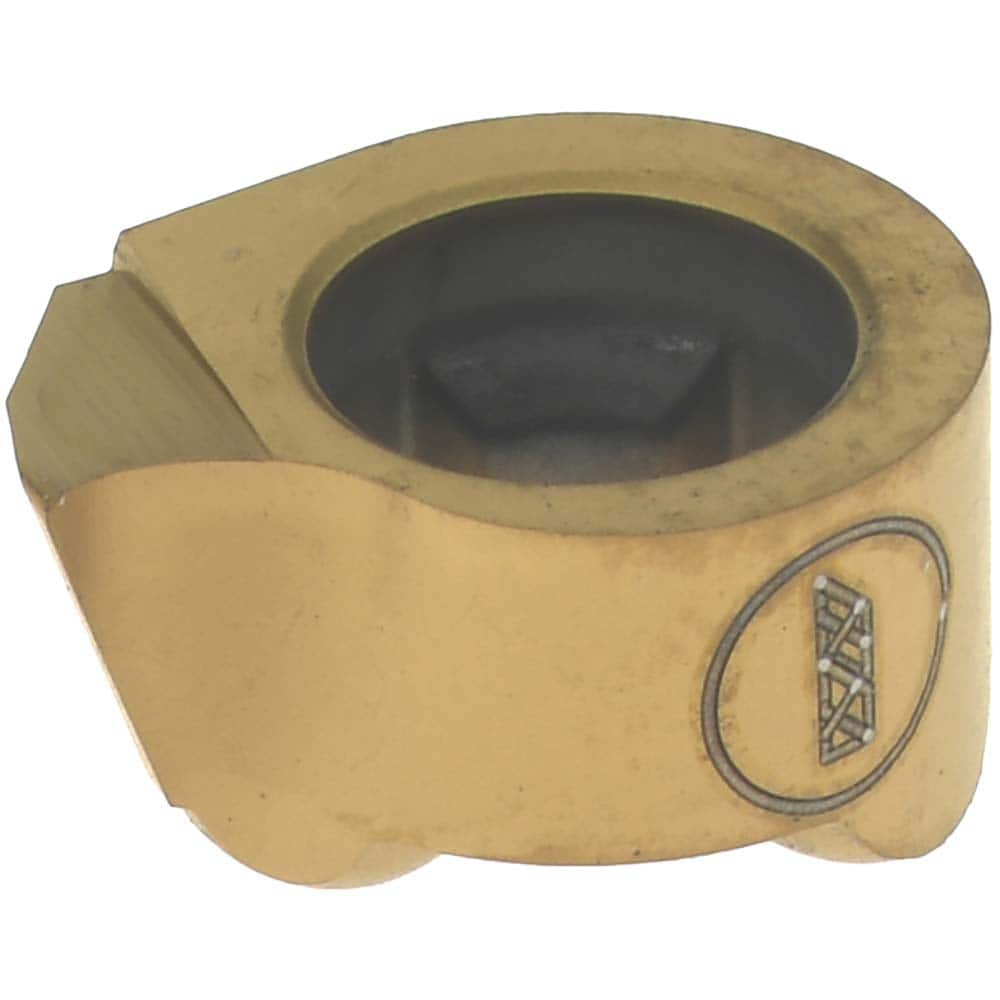

Iscar - GIQR 8-A18-0.15 IC528 Carbide Grooving Insert
Item #: 03014727
Brand: Iscar
Model #: 6402676
Product Specifications
| Insert Style | GIQR |
| Insert Size | 8 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.0510 |
| Material Grade | C6 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 18 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Coating Process | PVD |
| Overall Length (mm) | 7.60 |
| Overall Length (Decimal Inch) | 0.2992 |
| Manufacturers Catalog Number | GIQR 8-A18-0.15 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp |
| Corner Radius (Inch) | 0.0059 |
