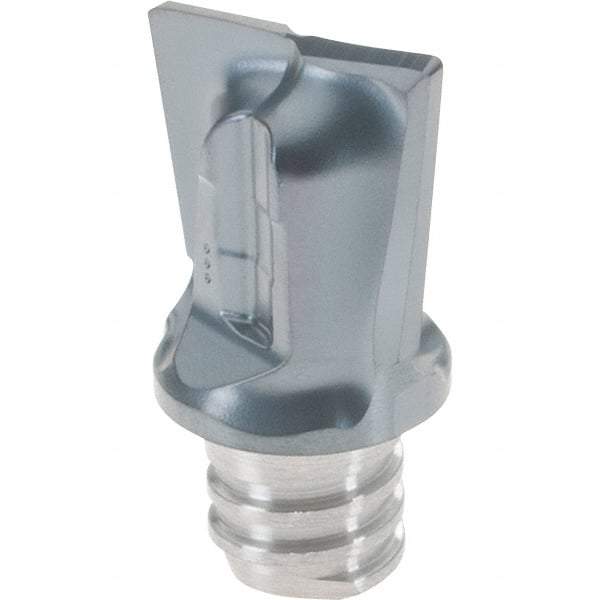

Iscar - MM HCT06 IC908 Grade Carbide End Mill Milling Tip Insert - TiAlN Coated, 2 Flutes, 10mm Cut Diam, 9mm Depth of Cut, 12.35mm Extension, 1/64" Cnr Rad, 10° Helix Angle
Item #: 02918837
Brand: Iscar
Model #: 5603352
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 9.00 |
| Depth of Cut (Decimal Inch) | 0.3543 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Slotting |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Extension From Holder (mm) | 12.35 |
| Extension From Holder (Decimal Inch) | 0.4862 |
| Thread Size | T06 |
| Helix Angle | 10 |
