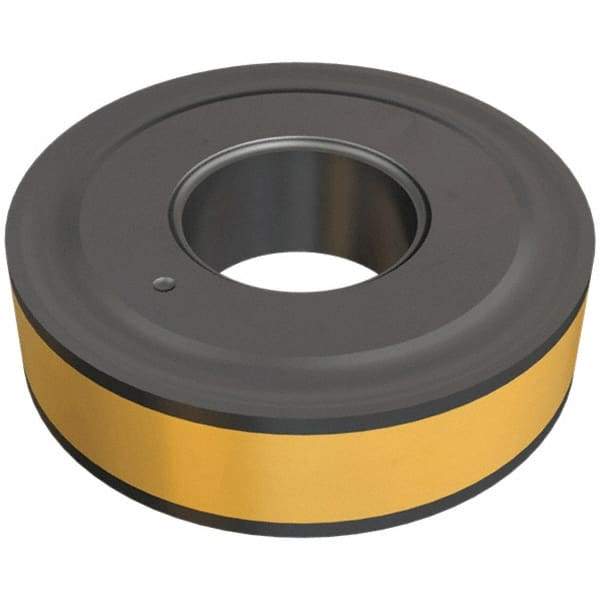

Iscar - RNMG43, IC8150 Grade Carbide Profiling Insert - TiCN/Al2O3 Finish, Round, 4.76mm Thick, 12.7mm Inscribed Circle
Item #: 02899847
Brand: Iscar
Model #: 5508824
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RNMG |
| Insert Size | 43 |
| Manufacturer's Grade | IC8150 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Coating | TiCN/Al2O3 |
| Hole Diameter (mm) | 5.15 |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Rake | Negative |
| Coating Process | CVD |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Shape | Round |
