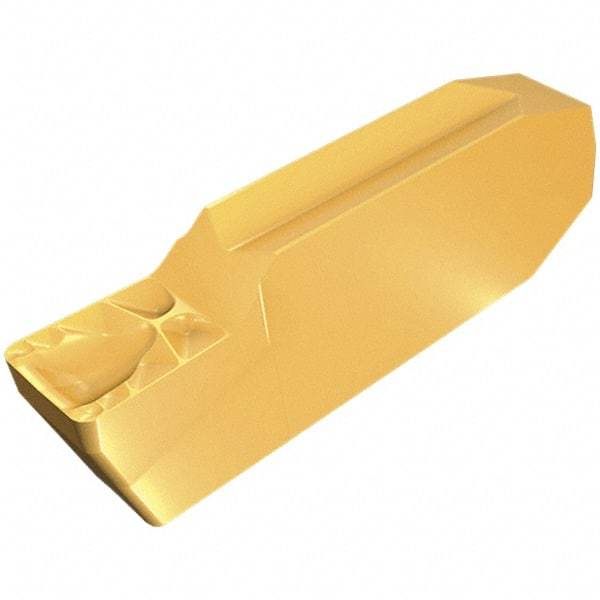

Iscar - 304GIMIY Grade IC808, 3mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiN/TiAlN Finish
Item #: 02867042
Brand: Iscar
Model #: 6404460
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMIY |
| Insert Size | 304 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| ISO Number | GIMIY 304 |
| Manufacturers Catalog Number | GIMIY 304 |
