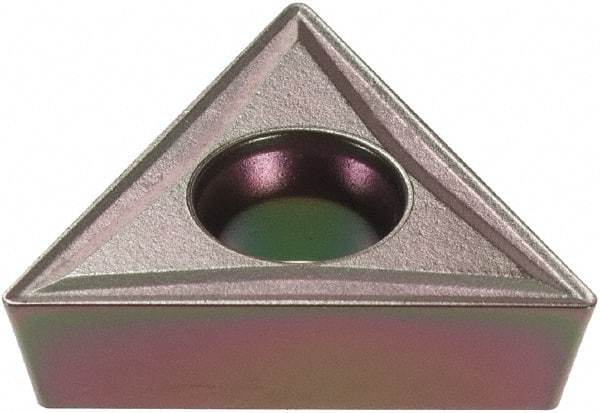

Allied Machine and Engineering - TCMT 16T304, Drill Chamfer Insert - Series QDSI 34
Item #: 02816494
Brand: Allied Machine and Engineering
Model #: TCMT-16T304
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | QDSI 34 |
| Material | Carbide |
| Insert Style | TCMT |
| Insert Size | 16T304 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.96 |
| Thickness (Decimal Inch) | 0.1559 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Material Grade | C5 |
| Included Angle | 60 |
| Length (mm) | 15.92 |
| Length (Decimal Inch) | 0.6268 |
