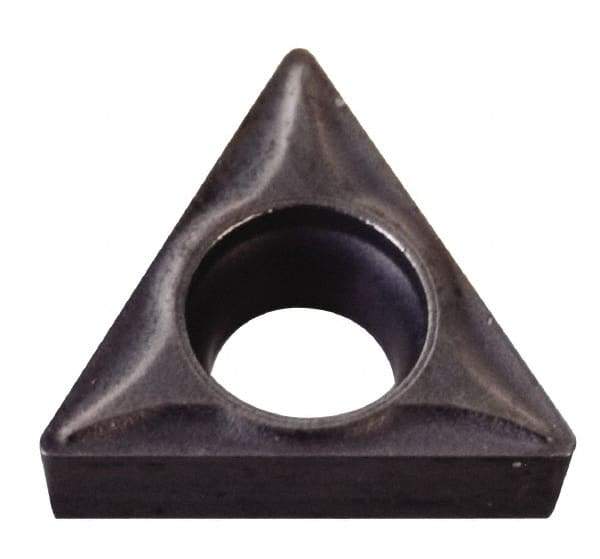

Kennametal - TCGT06T102 11 Grade KT325 Cermet Turning Insert - Uncoated, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 0.0079" Corner Radius
Item #: 02652311
Brand: Kennametal
Model #: 1198164
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 06T102 |
| Material | Cermet |
| Length (mm) | 6.88 |
| Length (Decimal Inch) | 0.2709 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0469 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KT325 |
| Coating | Uncoated |
| Material Grade | C3/C4/C7/C8 |
| Chip Breaker | 11 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Triangle |
