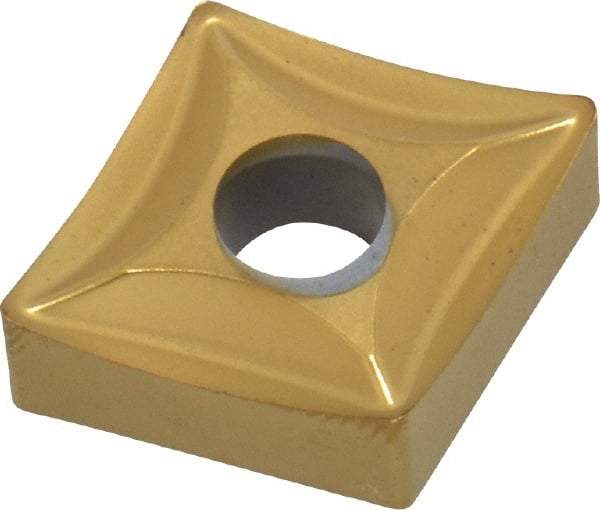

Kennametal - CNMS542 Grade KC730 Carbide Turning Insert - TiN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 02553881
Brand: Kennametal
Model #: 1160876
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMS |
| Insert Size | 542 |
| Material | Carbide |
| Length (mm) | 16.12 |
| Length (Decimal Inch) | 0.6346 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KC730 |
| Coating | TiN |
| Material Grade | C2/C3/C4 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; M |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
