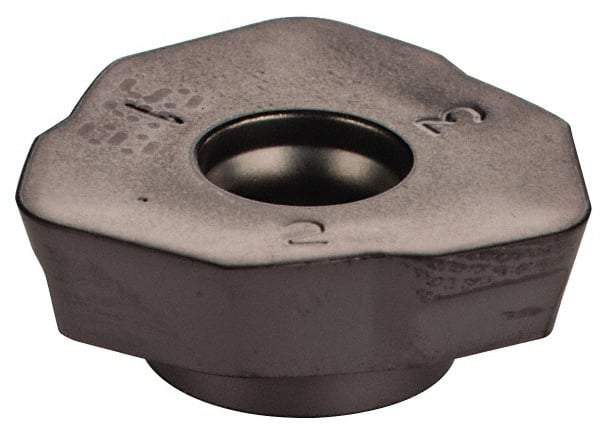

Iscar - FF WOMT09T320 CS Grade IC908 Carbide Milling Insert - TiAlN Finish, 0.1555" Thick, 14.5mm Inscribed Circle, 2mm Corner Radius
Item #: 02445419
Brand: Iscar
Model #: 5605627
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FF WOMT |
| Insert Size | 09T320 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.4173 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (Decimal Inch) | 0.1555 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 30.500 |
| Rake Angle | 6 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Chipbreaker | CS |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| ISO Number | FF WOMT 09T320-CS |
