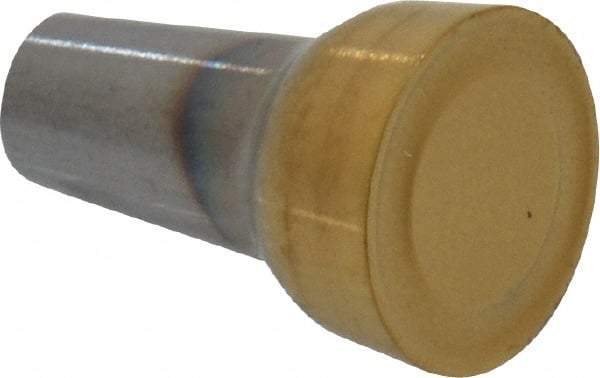

Seco - RCGS2, CP200 Grade Carbide Profiling Insert - TiAlN/TiN Finish, 7° Relief Angle, Round, 23/64" Thick, 1/4" Inscribed Circle
Item #: 01965847
Brand: Seco
Model #: 72266
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | RCGS |
| Insert Size | 2 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP200 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.3594 |
| Thickness (Inch) | 23/64 |
| Relief Angle | 7 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Secondary Workpiece Material | P |
| Primary Workpiece Material | S; M |
| Chipbreaker | 46 |
| Insert Holding Method | Clamp |
| Shape | Round |
