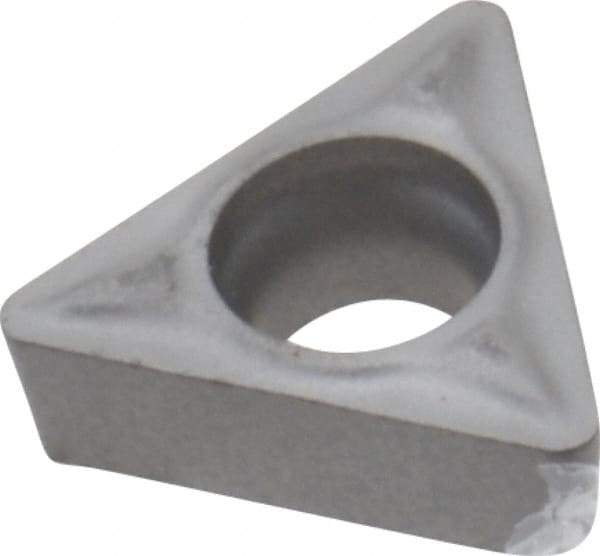

Parlec - TCMT061615 Carbide Boring Insert - Uncoated, 60° Triangle, 7° Relief Angle, 5/32" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 01850197
Brand: Parlec
Model #: T061615C2P
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TCMT |
| Insert Size | 061615 |
| Material Grade | C2 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (Inch) | 5/64 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0870 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Shape | Triangle |
