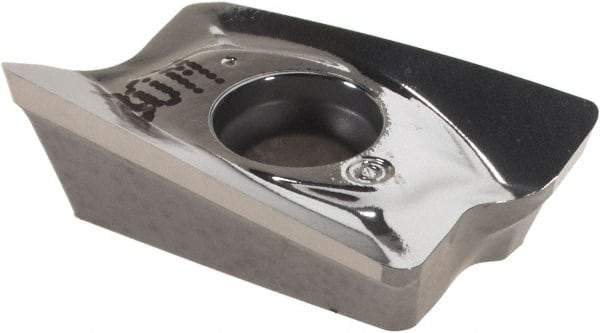

Ingersoll Cutting Tools - AOMT180508 HS Grade IN30M Carbide Milling Insert - Uncoated, 0.232" Thick, 0.031" Corner Radius
Item #: 01830520
Brand: Ingersoll Cutting Tools
Model #: 5811180
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AOMT |
| Insert Size | 180508 |
| Material | Carbide |
| Material Grade | C1/C2 |
| Manufacturer's Grade | IN30M |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4220 |
| Length (Decimal Inch) | 0.7670 |
| Thickness (Decimal Inch) | 0.2320 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HS |
| ISO Number | AOMT180508FR-HS IN30M |
