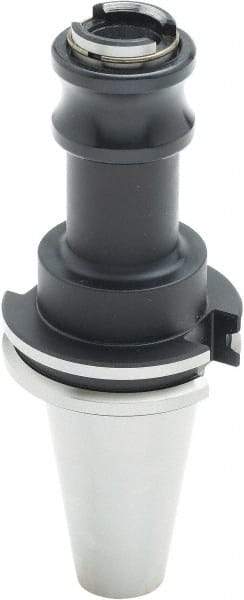

Parlec - 1" Straight Shank Diam Tension & Compression Tapping Chuck - 5/16 to 7/8" Tap Capacity, 5.46" Projection, Size 2 Adapter, Quick Change, Through Coolant
Item #: 01749852
Brand: Parlec
Model #: S10-20TA5C
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (Decimal Inch) | 0.3125 |
| Minimum Tap Capacity (Inch) | 5/16 |
| Maximum Tap Capacity (Inch) | 7/8 |
| Maximum Tap Capacity (Decimal Inch) | 0.8750 |
| Projection (Decimal Inch) | 5.4600 |
| Quick Change | Yes |
| Adapter Size | 2 |
| Nose Diameter (Decimal Inch) | 2.1800 |
| Tension (Decimal Inch) | 0.5600 |
| Compression (Decimal Inch) | 0.2500 |
| Through Coolant | Yes |
