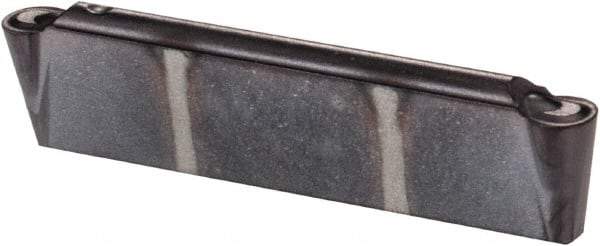

Kennametal - 0200M0A4R GMP Grade KC5010, 2mm Cutting Width Carbide Grooving Insert - 1.7mm Max Depth of Cut, Neutral, TiAlN Finish
Item #: 01701895
Brand: Kennametal
Model #: 2984026
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4R |
| Insert Size | 0200M0 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 1.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.0669 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KC5010 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Insert Seat Size | 2 |
| Chipbreaker | GMP |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | A4 |
| Rake | Positive |
