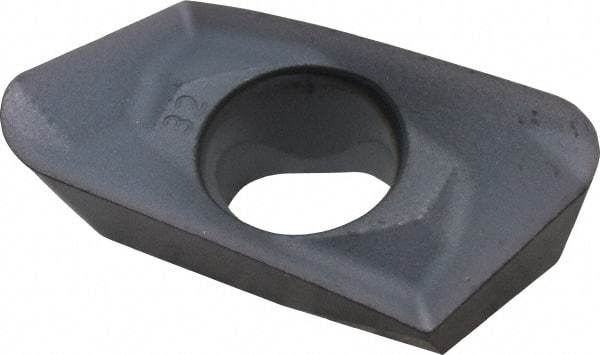

Kennametal - EC1832 LD Grade KC522M Carbide Milling Insert - TiAlN Finish, 0.217" Thick, 3.2mm Corner Radius
Item #: 01654664
Brand: Kennametal
Model #: 2271094
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1832 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | KC522M |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.4300 |
| Length (Decimal Inch) | 0.8579 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 70 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | LD |
| ISO Number | EDCT180532PDERLD |
