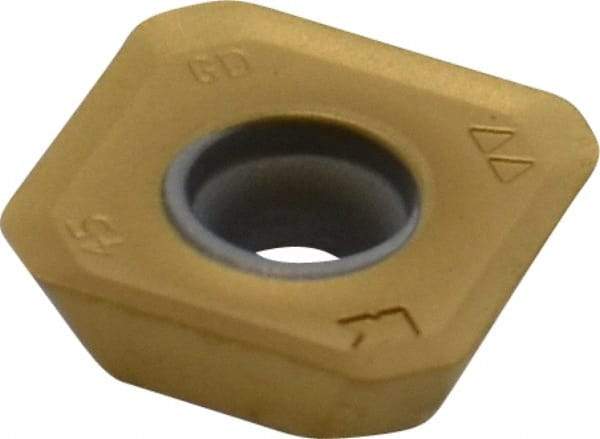

Kennametal - SEPT13T3 GD Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.1563" Thick, 0.528" Inscribed Circle, 1.5mm Corner Radius
Item #: 01654524
Brand: Kennametal
Model #: 2257314
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEPT |
| Insert Size | 13T3 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5280 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Hole Diameter (mm) | 4.09 |
| Hole Diameter (Decimal Inch) | 0.1610 |
| Relief Angle | 20.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| ISO Number | SEPT13T3AGENGD |
