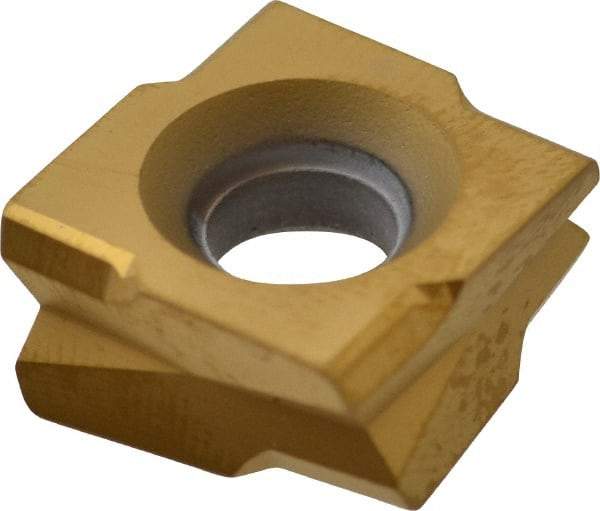

Kennametal - SPHX15T6 GP Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.26" Thick, 15mm Inscribed Circle
Item #: 01654037
Brand: Kennametal
Model #: 1818716
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPHX |
| Insert Size | 15T6 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Inscribed Circle (mm) | 15.00 |
| Thickness (Decimal Inch) | 0.2600 |
| Hole Diameter (mm) | 6.00 |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Relief Angle | 11.000 |
| Rake Angle | 30 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GP |
| ISO Number | SPHX15T6ZCSRGP |
