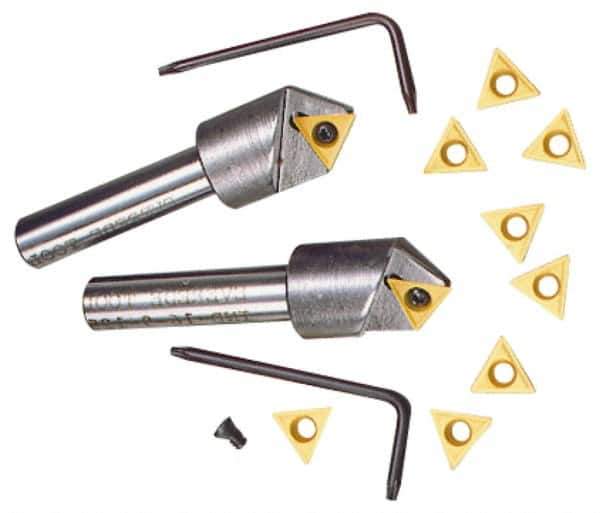

Everede Tool - TPGB207 Grade MU12 Carbide Boring Insert - Uncoated, 60° Triangle, 11° Relief Angle, 1/4" Inscr Circle, 3/32" Thick, 0.007" Corner Radius
Item #: 01607381
Brand: Everede Tool
Model #: TPGB-207-MU12
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TPGB |
| Insert Size | 207 |
| Material Grade | C1 |
| Manufacturer's Grade | MU12 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating | Uncoated |
| Relief Angle | 11 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
