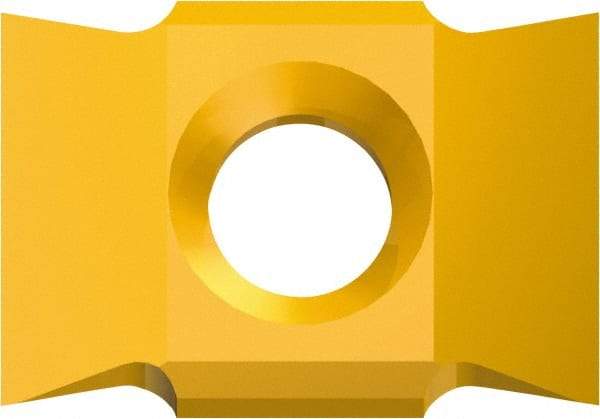

Emuge - 2.5 to 4mm Pitch, 10-6 TPI, Internal Thread, UN/ISO Standard, GIGANT-IC G620 Grade Thread Mill Insert - Carbide, TiN Coating
Item #: 01535400
Brand: Emuge
Model #: GF643105.9517
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Insert Style | GIGANT-IC |
| Thread Type | Internal |
| Thread Standard | UN/ISO |
| Pitch (mm) | 2.50-4.00 |
| Threads Per Inch | 10-6 |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3748 |
| Manufacturer's Grade | G620 |
| Material | Carbide |
| Coating | TiN |
| Width (Decimal Inch) | 0.2500 |
| Width (mm) | 6.35 |
| Conical | No |
