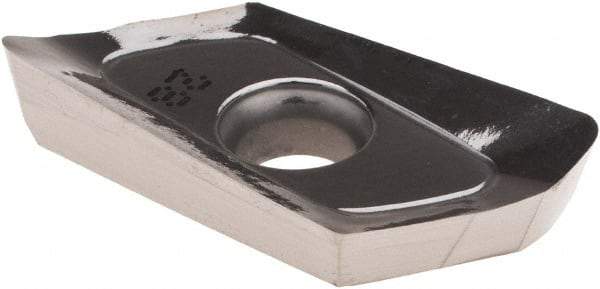

Iscar - HM90 APCR220616 P Grade IC28 Carbide Milling Insert - Uncoated, 0.2717" Thick, 1.6mm Corner Radius
Item #: 01026962
Brand: Iscar
Model #: 5604912
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APCR |
| Insert Size | 220616 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5402 |
| Length (Decimal Inch) | 1.1693 |
| Thickness (Decimal Inch) | 0.2717 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 11.000 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 22.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.8701 |
| ISO Number | HM90 APCR 220616R-P |
