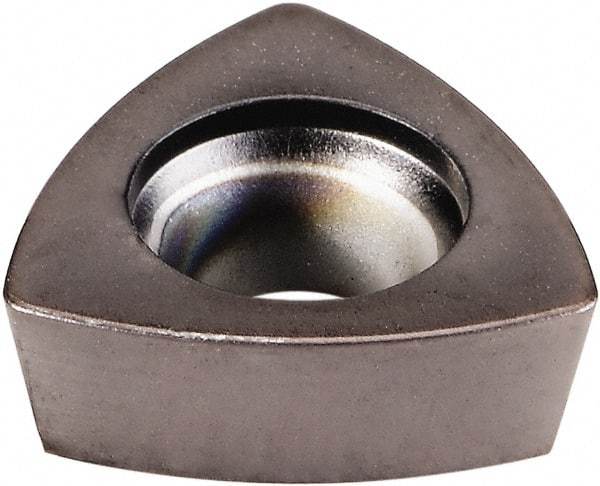

Kennametal - WPGX030204 Grade KC522M Carbide Milling Insert - AlTiN Finish, 3/32" Thick, 5.5mm Inscribed Circle, 8mm Corner Radius
Item #: 00878520
Brand: Kennametal
Model #: 3877728
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPGX |
| Insert Size | 030204 |
| Material | Carbide |
| Manufacturer's Grade | KC522M |
| Coating | AlTiN |
| Length (Decimal Inch) | 0.2604 |
| Inscribed Circle (mm) | 5.50 |
| Inscribed Circle (Decimal Inch) | 0.2165 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 12.000 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Insert Hand | Neutral |
| ISO Number | WPGX030204LD080 |
