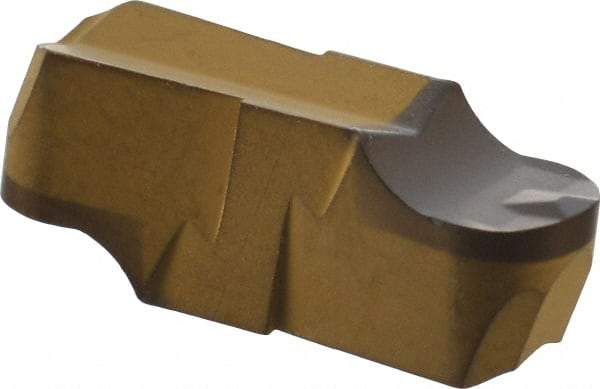

Iscar - 478239GIPI Grade IC8250, 4.78mm Cutting Width Carbide Grooving Insert - Neutral, 2.39mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 00732032
Brand: Iscar
Model #: 6405266
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 478239 |
| Material | Carbide |
| Cutting Width (mm) | 4.78 |
| Cutting Width (Decimal Inch) | 0.1882 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling; Recessing |
| Corner Radius (mm) | 2.39 |
| Corner Radius (Decimal Inch) | 0.0941 |
| Coating Process | CVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| Overall Width (mm) | 4.78 |
| Overall Width (Decimal Inch) | 0.1882 |
