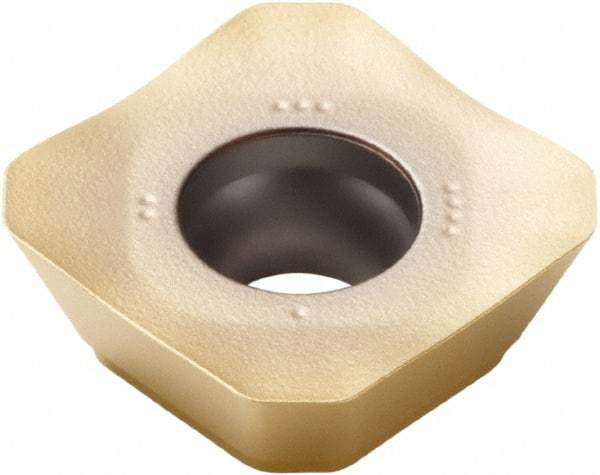

Seco - SEEX1204 M10 Grade F30M Carbide Milling Insert - TiAlN/TiN Finish, 0.187" Thick, 1/2" Inscribed Circle
Item #: 00632901
Brand: Seco
Model #: 04942
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 1204 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F30M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Relief Angle | 20.000 |
| Rake Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M10 |
| ISO Number | SEEX1204AFN-M10 |
